Industrial 3D Printing: Rapid Pulley Prototype for Machine Fitment
A full-scale PLA pulley prototype created to verify machine fitment, clearances, and design performance before steel production.
PROJECT
Industrial prototype
PURPOSE
Machine fitment
MATERIAL
PLA
NEXT STEP
Steel production
VALIDATE BEFORE MACHINING
A physical answer before an expensive commitment.
This custom industrial pulley was rapidly prototyped with 3D printing to verify fitment, clearances, and overall design performance before moving into final steel production.
The full-scale PLA prototype gave the customer a physical part to test, measure, and review. Potential issues could be identified and design adjustments made before investing in machining or fabrication.
RAPID FITMENT TESTING
Confirm the critical dimensions in the real machine.
A screen can show geometry, but a full-scale prototype shows how that geometry behaves in context. The printed pulley allowed the team to check mounting locations, surrounding clearances, overall assembly fit, and dimensional relationships directly.
PLA was selected for a fast, dimensionally accurate development model. The prototype was not intended to replace the final steel component. It was the low-risk step that made the steel component easier to approve.
PROJECT DETAILS
The project at a glance
Project highlights
- Custom industrial pulley prototype
- Printed in PLA for fitment testing
- Full-scale model for dimensional verification
- Reduced machining risk and development cost
- Final production part planned in steel
Specifications
- Scale: Full scale for fitment verification
- Material: PLA filament
- Purpose: Machine fitment testing and design validation
- Application: Industrial pulley prototype
- Process: FDM 3D printing
- Goal: Verify clearances, mounting locations, and assembly fit
- Final Material: Steel after successful prototype validation
FASTER DEVELOPMENT, LOWER RISK
Prototype the uncertainty out of production.
Industrial prototypes make it possible to evaluate a design before the highest-cost manufacturing steps begin. That shortens the feedback loop and makes revisions less disruptive.
For this project, the printed pulley provided a practical bridge between CAD and steel. The customer could move forward with stronger confidence that the final part would fit the intended machine environment.
PROJECT GALLERY

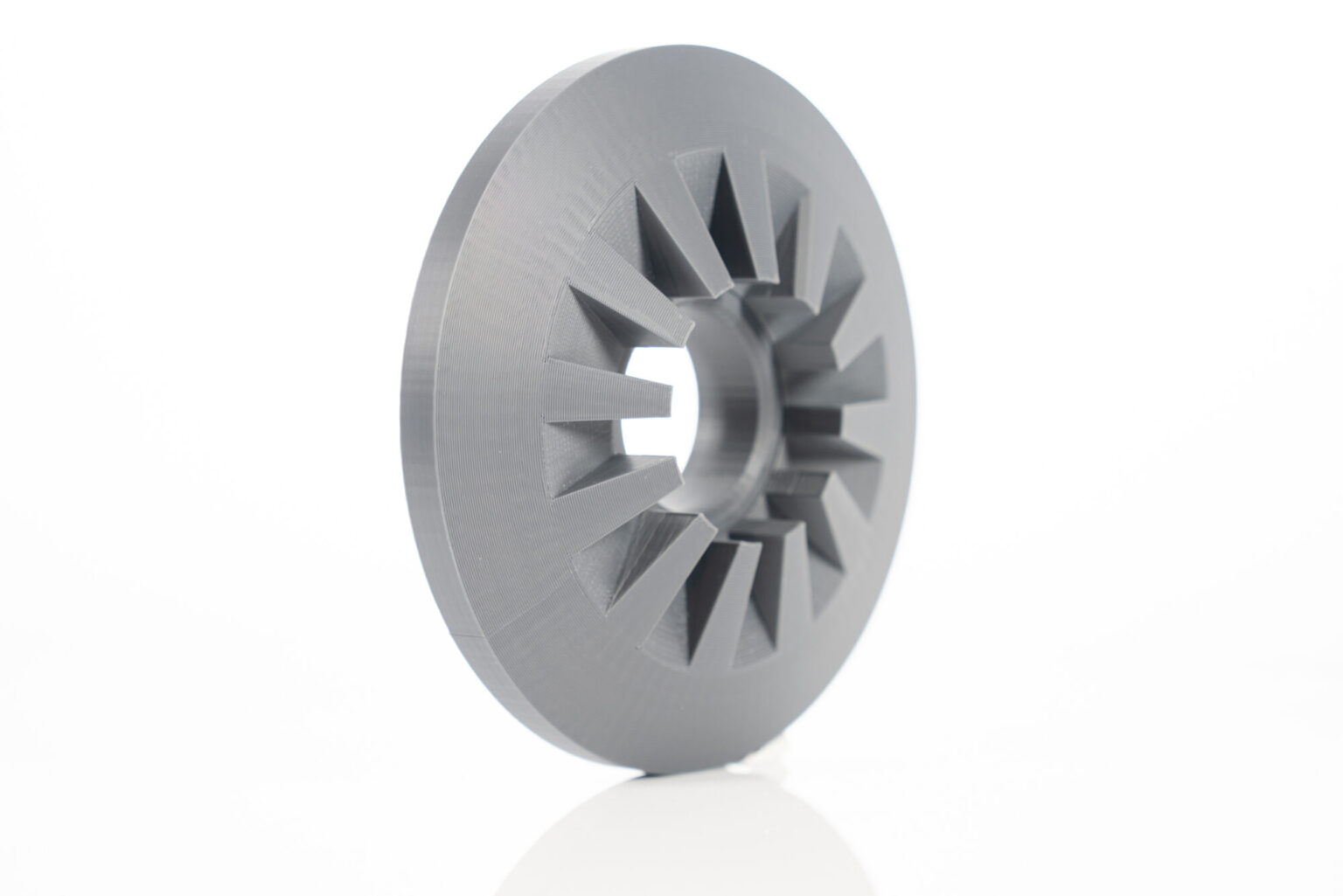

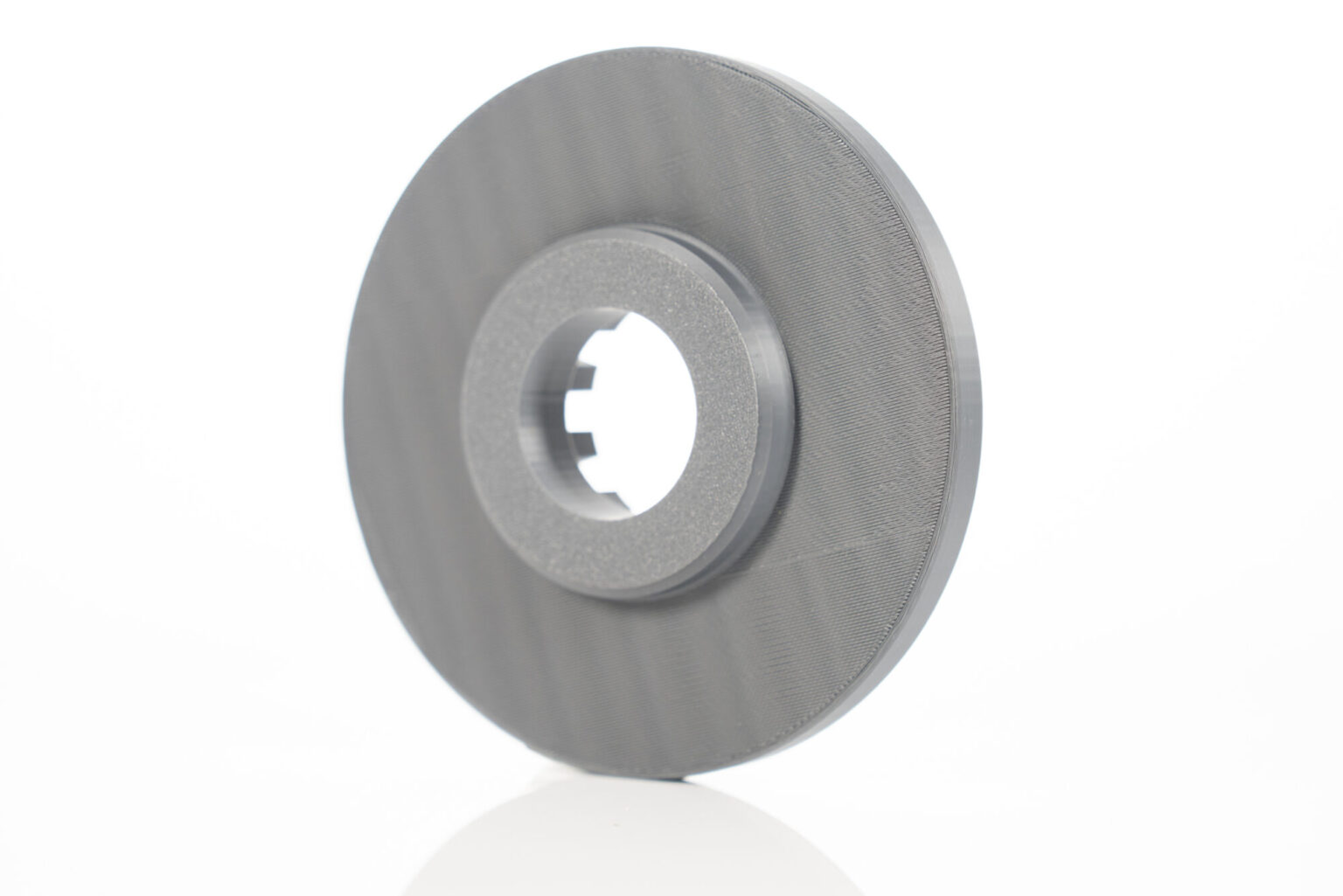

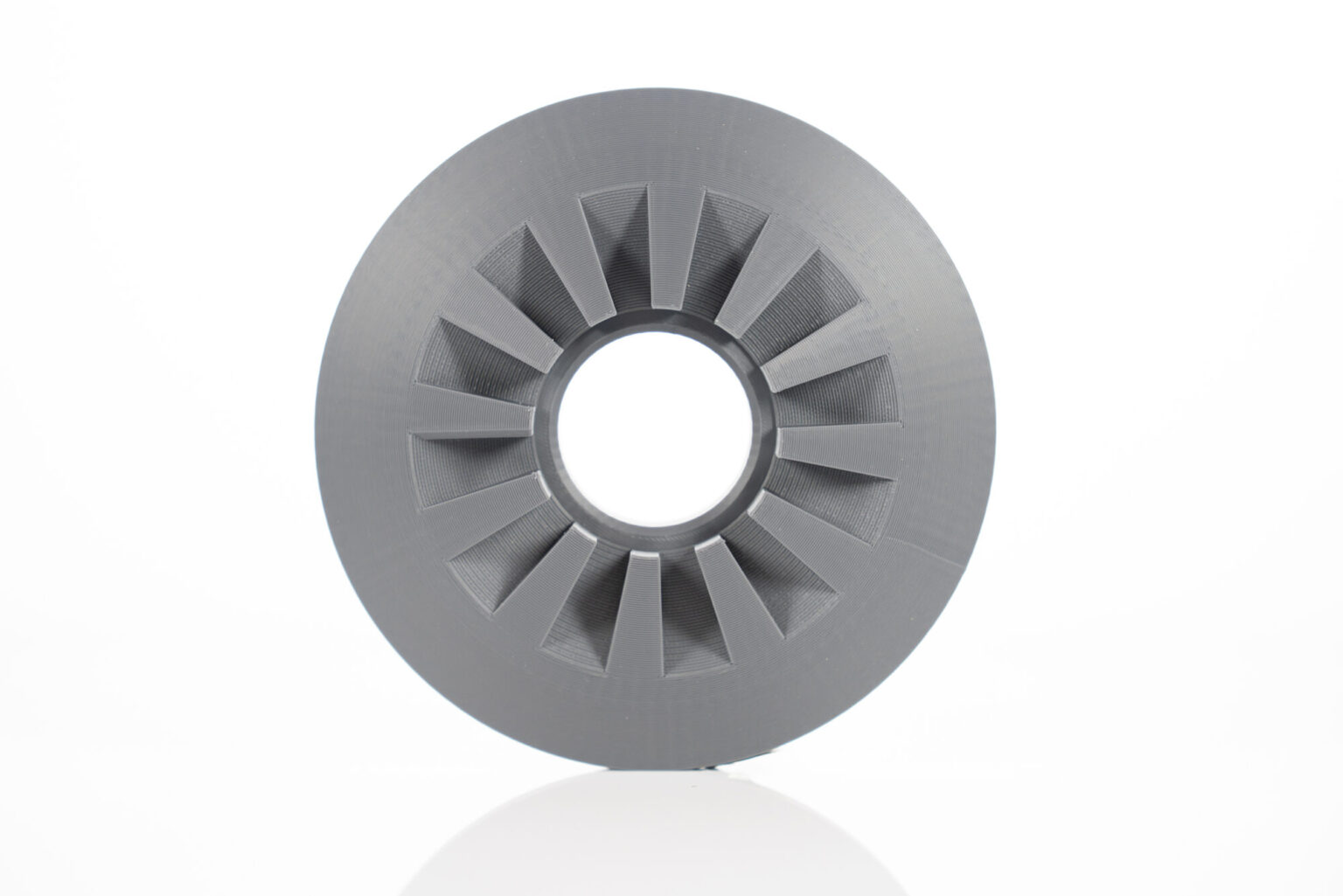

A full-scale prototype built for real fitment checks
